Wisper Wayfarer H9 Hub-Drive Crossbar 250W 43.2V Electric Bike

H9 Hub-Drive Crossbar E-Bike

Made for the Adventure Seeker with a Love for the Mountain Parks:

• Unmatched versatility
• Enjoy a smooth ride with 100mm travel Suntour XCM 30 forks
• Crafted from robust hand-welded 6061 Alloy

The Wisper Wayfarer H9 hub-drive crossbar model is versatile and suitable for a variety of uses. In City spec, it is an ideal option for commuting or daily errands, while under the sleek city exterior lies a powerful Wayfarer super high-torque motor producing 50Nm at the rear wheel, equivalent to 100Nm at the pedals. With a few modifications and tyre changes, it transforms into a reliable off-roader, perfect for exploring hilly terrain and forests.



FEATURES

Gears

Experience smooth and reliable shifting with the 8-speed Shimano drivetrain. The Shimano 8-speed rapid fire shifter allows for comfortable and effortless gear changes, while the 11-34T freewheel provides a wide range of gears to easily conquer steep hills and maintain power on flat terrain.

Disc Brakes

Benefit from reliable and powerful braking performance with Wisper Hydraulic disc brakes. The three finger brake lever is designed by Wisper to provide a comfortable and efficient mechanism for all hand sizes. Equipped with 180mm and 160mm front and rear discs, experience optimal braking power and precise control.

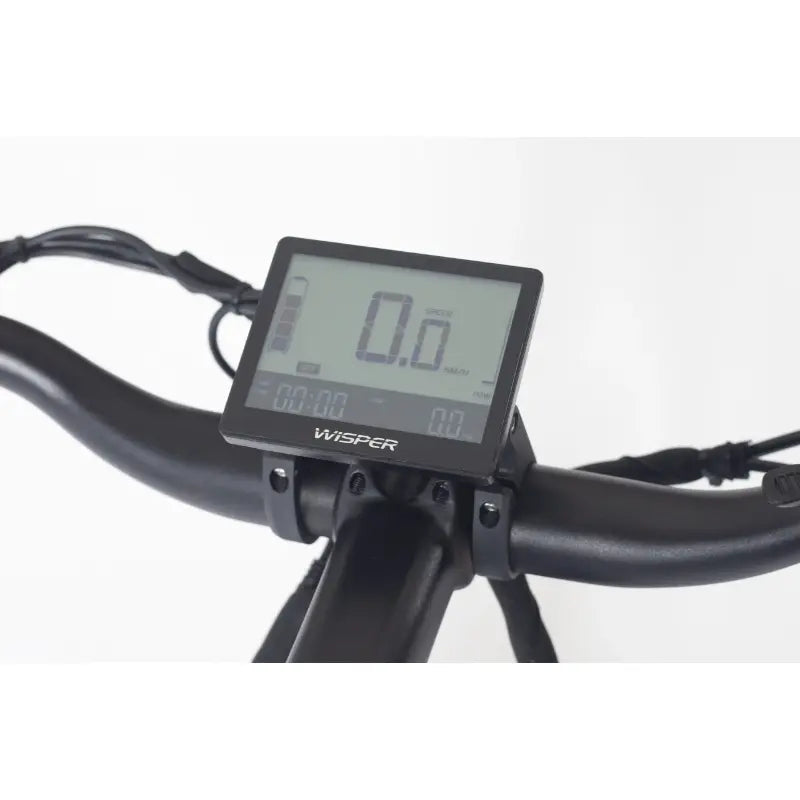

LCD Display

Gain a comprehensive understanding of your ride with the Backlit LCD Display. Easily view your current speed, battery level, assistance level, average speed, trip distance, and lifetime odometer at the push of a button.

Battery

The Wayfarer series includes a selection of ultra-slim high-capacity lithium batteries: 450Wh or 700Wh. This provides abundant energy for any journey. As with all Wisper batteries, they can be effortlessly removed with a simple twist of a key, allowing for convenient indoor charging and storage.

Adventure Bike Tyre Upgrade (optional extra)

Experience top-notch performance with the Goodyear Peak Folding 27.5” x 2.25” tyres. These all-rounders feature a specially designed Rugged-Terrain compound for optimal grip, wear, and efficiency. Plus, with M:Wall puncture protection, you can count on increased durability. Please note that mudguards cannot be used with tyres larger than 2.25".



SPECIFICATION

• Motor:  Wisper Super Hi Torque (100Nm) Mid Drive 43.2V 250W Nominal
• Lithium Battery:
  • In frame, secure removable. Chargeable in or out of frame
  • On/off button with LED charge status light.
    Standard 450Wh
  • Long range 700Wh
• Assisted Range:
  • 450Wh Max Range = 60 miles (95km)
  • 700Wh Max Range = 90 miles (140km)

• Controls:
  • Wisper Back lit LCD display with remote controls
  • Thumb throttle to 4mph (6km/h) walk along
  • Thumb throttle to 15.5mph (25km/h) assist boost
• Bicycle Weight:
  • 450Wh: 26kg
  • 700Wh: 28kg
• Frame: Hand welded, 6061 Alloy T4 and T6 tempered
• Frame Size: 18” 46cm
• Frame Colour: Pillar Box Red or Sky Blue 6 coats
• Forks: Suntour XCM 30 100mm travel
• Bars: eMTB 760mm anodised black
• Stem: Magix black anodised 70mm
• Seat Post: 31.6mm 350mm with 100mm safety line
• Saddle: Wisper Comfort, eBike with seat handle
• Kick Stand: Black anodised alloy
• Gears: Shimano Altus 8-speed with Rapid Fire shifter
• Chain: KMC X8 rust resist 8-speed
• Chain Drive: Prowheel 48t
• Freewheel: 13 to 34
• Brakes: Wisper Apex Hydraulic disc brakes, 2.5 finger F180mm R160mm
• Wheels: Alloy black anodised double wall 27.5” x 1.24″ (31.4mm)
• Tyres: Kenda 27.5” 2.2 high puncture resistance with reflector
• Mudguards: Black Anodised Aluminium 2.6″
• Lighting:
  • Front: Spaningo XE 6V powered from bike battery
  • Rear: Spaningo XE 6V powered from bike battery
  • NOTE: Not included on the trail configuration.
• Rack:
  • Front (optional extra): Wisper integrated custom, 10kg limit
  • Rear: Wisper integrated custom, 17kg limit
• Max Weight Load Inc. Luggage: 21 stones/135kg



WATT PEDAL BENEFITS

Our dedicated customer service team is here to help you find the perfect bike tailored to your needs!

Take advantage of our Paypal Payment option for a more manageable payment process, so you never have to miss out on all the good times!

We believe in enhancing your physical and mental well-being while encouraging adventures and outdoor exploration. Plus, we promote environmentally sustainable travel and commuting options.



LEGAL REQUIREMENTS

The electrically assisted pedal cycle regulations are the laws that let you have a small electric motor on a pedal cycle, and still use it just like a normal bike. Find out what they mean for your e-cycle

EAPCs – electric bikes or e-bikes in common parlance – must now meet the following criteria in order to have the same legal standing as regular non-assisted bicycles and to be allowed on roads, cycle paths and other places where bicycles are allowed under UK law.

• Electric assistance can only be provided to a maximum of 25kph (15.5mph).
• The motor used must be of no more than 250 Watts (maximum continuous rated power).
• The e-bike’s pedals must be in motion for motor assistance to be provided.
• The rider must be 14 years of age or over.

There are a number of different ‘e-bike-like’ machine types out there which, at first glance (or even after a detailed inspection), may be difficult to distinguish from legal e-bikes. This is an important distinction as the latter can be used without any red tape, in just the same way as a regular non-assisted bicycle, while the former cannot.

These other categories are fully regulated motor vehicles under EU and UK law, so using them on public highways in the UK is a much more complex affair and inevitably involves attempting to obtain paperwork and possibly meet other requirements such as insurance and dealing with the DVLA. In short, they are likely to be legally classed as a moped or even motorbike.

Manufacturing standards are also more complex so the manufacturer generally has to through the procedure known as type approval, which involves passing safety standards before the vehicle can be put on the market.



WISPER FULL THROTTLE OPTION

Continuing our journey of pro-active leadership, innovation and progression within the e-bike industry we are proud to be able to offer fully UK legal, full throttle E;eBikes that will power our bikes up to 15.5mph without pedalling.

As well as making our bikes safer and more easily controlled at low speeds, offering faster acceleration from stand still, Wisper full throttle electric bicycles make cycling even more inclusive than ordinary eBikes, enabling those that need a little extra help when discovering, or returning to the joys and freedom cycling offers.

Please note…

Use of a throttle can reduce the range of your ebike considerably, so to achieve maximum range from your bike it’s best to use the throttle only when needed.

How It Works

Once we receive your order for a Wisper full throttle bike we arrange to have your bike tested by the DVSA and Single Vehicle Approved as an L1e in the category 250W LPM (250Watt Low Powered) Moped.  This can take between 2 and 8 weeks as the bike has to be taken to a specially approved MVSA centre for the Single Vehicle Approval tests to be carried out.  The tests are to make sure our standard eBike is safe and complies with current EAPC (Electrically Assisted Pedal Cycle) regulations.  Once these tests have been completed we are presented with a British National Type Approval, Minister’s Approval Certificate bearing your bike’s frame number, this ensures the certificate can only be used in conjunction with your specific Wisper bike. The certificate must be kept in a safe place just like an MOT certificate although we and the Driver and Vehicle Standards Agency will keep a record of your Bike’s Type Approval.

Unlike an MOT Certificate, the Single Vehicle Approval Certificate lasts for the lifetime of the bike and does not need to be renewed.

Full throttle eBikes will continue to work in exactly the same way a standard eBike works when the throttle is not used. The rider only uses the throttle when needed, it will not affect any other standard EAPC function.



Exclusions

To obtain Type Approval bikes must be fitted with front and rear lights operated together on one switch. Because the Tailwind Trail, Tailwind City and Wayfarer Mountain do not have lights these bikes cannot yet be Type Approved.  We are working on a solution and hope to offer these bikes with a full throttle by mid 2023.

The Regulations

L1e electric bikes are a sub-group of Low Powered Moped that meets the criteria laid down in the Electrically Assisted Pedal Cycle Regulations 1983 (SI 1983 No. 1168) as amended by SI 2015 No. 24. The requirements are that the vehicle:

1. Be fitted with pedals by means of which it is capable of being propelled
2. Be fitted with no motor other than an electric motor, which has a maximum continuous rated power, which does not exceed 250 watts and cannot propel the vehicle when it is travelling at more than 15.5 mph

In essence, our bikes, when Type Approved, can be ridden legally on roads and private land within the UK at speeds of up to 15.5mph using just the throttle.

Why We Offer Wisper Full Throttle eBikes

1. Full Throttle eBikes offer a quick, eco friendly and cost efficient option for city commuters at a time when everyone is looking to save on rising fuel and transport costs.
2. Full Throttle eBikes offer commuters better control and enhanced safety when moving slowly in traffic.
3. Full throttle eBikes offer immediate power when accelerating especially from traffic lights or on hills.
4. Full Throttle eBikes allow a rider to “take a breather” from time to time, particularly useful when commuting in hot weather.
5. Full Throttle eBikes make cycling even more inclusive, enabling those of us with for example impaired movement to enjoy the benefits and freedom eBikes bring.

Costs and Warranty

Anyone can take their Wisper bike to an approved MVSA centre and apply for Single Vehicle Approval. The cost of the test and certification is £55.00 which is payable to the DVSA and needs to be paid at the time of booking the test appointment.  If you choose to have your bike Single Vehicle Approved yourself, please contact us with the TA details and we will for a fee of £45.00 upgrade your bike’s software, this has to be done physically at our Kent HQ. If you would like your warranty to be extended to cover your bike with a full throttle we will make a further charge of £45.00.  This does not extend the timeline of your warranty which will remain at 24 months from the time you originally purchased your Wisper bike.

We offer the full Single Vehicle Approval certification service for a fee of £300.00 on top of the price of a new Wisper bike or £350.00 on a used Wisper bike.  We only offer this service on Wisper bikes as we know they are fully legal EAPCs.

Our charges include the test fee, upgrading the software on the bike, one of our technicians driving the bike to the test centre, waiting whilst the test is done and bringing the bike back to our HQ in Kent. Importantly it also includes, a £45.00 charge to extend our two year warranty to include full throttle riding. We charge an extra £50 on used Wisper bikes to service the bike before we take it to the test centre.

If you are intending to take your Wisper bike out of the UK, it is your responsibility to check it may be used legally at your destination. We can for a £55.00 fee re-restrict your bike for you whilst you are out of the UK and de-restrict it for you when you get home, this work has to be done physically at our HQ in Kent.

All prices include VAT.

If you have any further questions please contact info@wattpedal.com.

PAYMENT OPTIONS

We are pleased to offer a variety of payment methods to accommodate your needs. You can choose from major credit and debit cards, including Visa, MasterCard, American Express, and Discover. Additionally, we support PayPal for those who prefer digital payment options.

For customers interested in spreading the cost over time, we also provide a financing option that allows you to make instalment payments. This makes it easier to manage your budget while enjoying our products and services.

Rest assured, all transactions are processed using industry-standard encryption to ensure your personal and financial information is kept safe and secure. At checkout, simply select your preferred payment method for a seamless and convenient purchasing experience. If you have any questions about our payment options, feel free to reach out to our customer service team for assistance.

 Here are your options:

1 - CREDIT / DEBIT CARD

**Convenient and Reliable Payment:** You can pay using your credit card (VISA or MasterCard). Simply enter your credit card number, expiration date, and verification code. We will transmit this information using secure encryption.

If your credit card is enrolled in 3D-Secure, you will be directed to your bank's security questionnaire. After completing this step, your order can be processed within a few seconds. Please note that the amount will only be charged when the goods are dispatched.

2 - PAYPAL

With PayPal you can pay easily, speedily and securely. Use your PayPal account and pay conveniently for your order with us.

We receive a payment confirmation immediately from PayPal and will be able to process your order straight away. For you, payment via PayPal is always free – Watt Pedal pays the processing fees.

WARRANTY

You probably won't need to claim under your warranty but it's nice to know we will support you if anything goes wrong. All Wisper ebikes have a good, comprehensive two year warranty on electrical and bike parts with five years on frames, for full details please see the Extended Warranty.

If you make a claim, we need to be able to identify both you and your bike. So we need to ask a few questions. You can contact us for more information.



MANUAL

WISPER WAYFARER H7 HUB-DRIVE MANUAL
